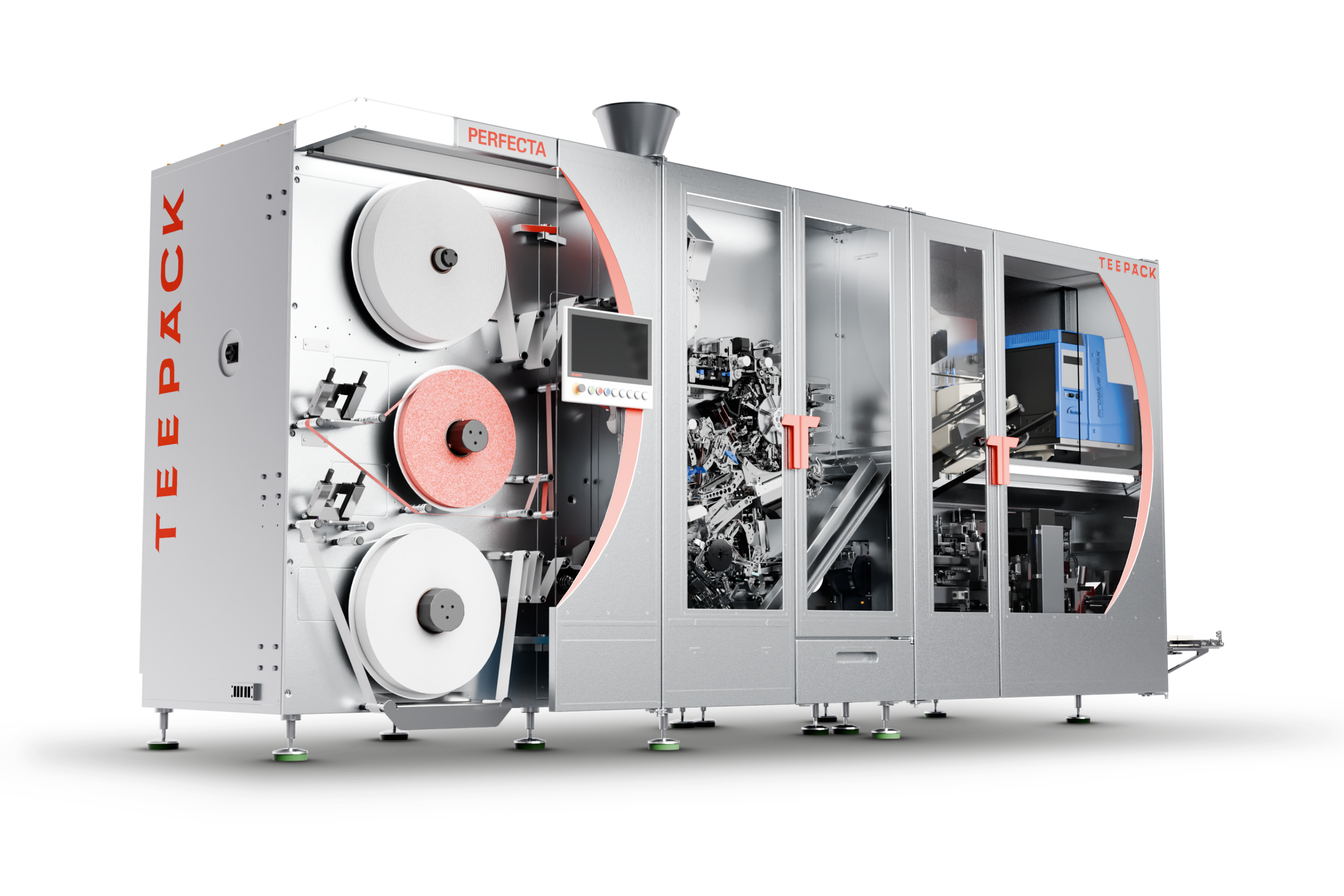

PERFECTA

Maximum flexibility, maximum efficiency.

Teepack is going digital with the Perfecta and enters Industry 4.0.
Franz Andel
Head of Automation

THE BENEFITS

  • Fast and efficient production
  • Naked filter bags, tea bags in crimped paper envelopes, heat-seal envelopes or cold-seal envelopes possible
  • Retrofitting the basic module for the different envelope options is easy
  • Accessible design and maximum modular concept
  • All components can be replaced quickly and easily
  • Easily accessible, user-friendly and maintenance is much less time-consuming than previously
  • Reduced downtimes thanks to PIT STOP maintenance strategies
  • End-of-line module (EOL) with erector and lid closer for different types of outer packaging can be easily attached to the basic module
  • New HMI with clear graphic symbols
  • Innovative IoT module for convenient AR maintenance support and live evaluation of operating data (OEE) in the Teepack cloud
  • Convenient AR maintenance support and live overall equipment effectiveness (OEE) analysis in the cloud
  • Superior safety standards and durable “Made in Germany” premium quality
  • Hygienic design enables faster cleaning
  • Details

    The PERFECTA produces non-heat-seal filter paper with knotted cardboard tags (smallest size available: 20 x 24 mm).

    You can easily expand the basic module with an optional unit for paper envelopes or hot/cold-seal envelopes. The end-of-line module (EOL) with erector and lid closer for different types of outer packaging can be easily attached to the basic module and quickly converted to the desired type of bag. Flow packs (for naked bags only) are also optional.

    Successful production can be simplified even further as an option: Services such as commission- ing, maintenance, service and training become more efficient and convenient through the use of customised AR solutions.

    The PERFECTA offers all of these features – perfectly. It also adds superior safety standards and durable “Made in Germany” premium quality.

  • Packaging variants
    • Cardboard tag, knottedCardboard tag, knotted
    • Filter bag, knottedFilter bag, knotted
    • Naked Tea BagNaked Tea Bag
    • Paper Envelope BagPaper Envelope Bag

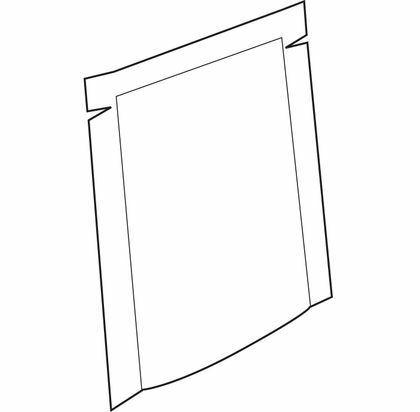

    • Heat Seal Tea BagHeat Seal Tea Bag
  • Technical data
    Production speedup to 450 bags/minute*
    Length x Widthapprox. 4370 x 1550 mm
    Height with hopperapprox. 2420 mm
    Height without hopperapprox. 2120 mm
    Net weightapprox. 4200 kg
    Electric power connection20 kW
    Average power consumption8 kW
    Maximum power consumption12 kW
    Operating pressure6 bar
    Compressed air consumptionup to max. 250 NL/min
    Compressed air connection½"
    *Evaluated according to your specific requirements.
    Note: The power consumption and compressed air consumption depends on the machine equipment
  • Downloads
REQUEST AN OFFER

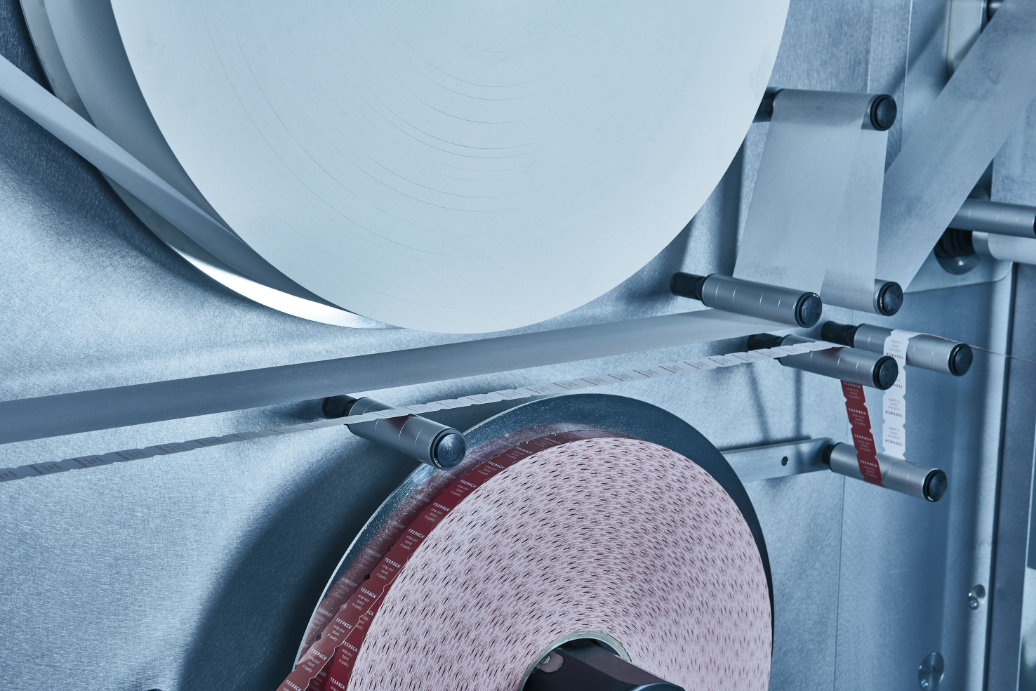

  • Filter paper and tag feed

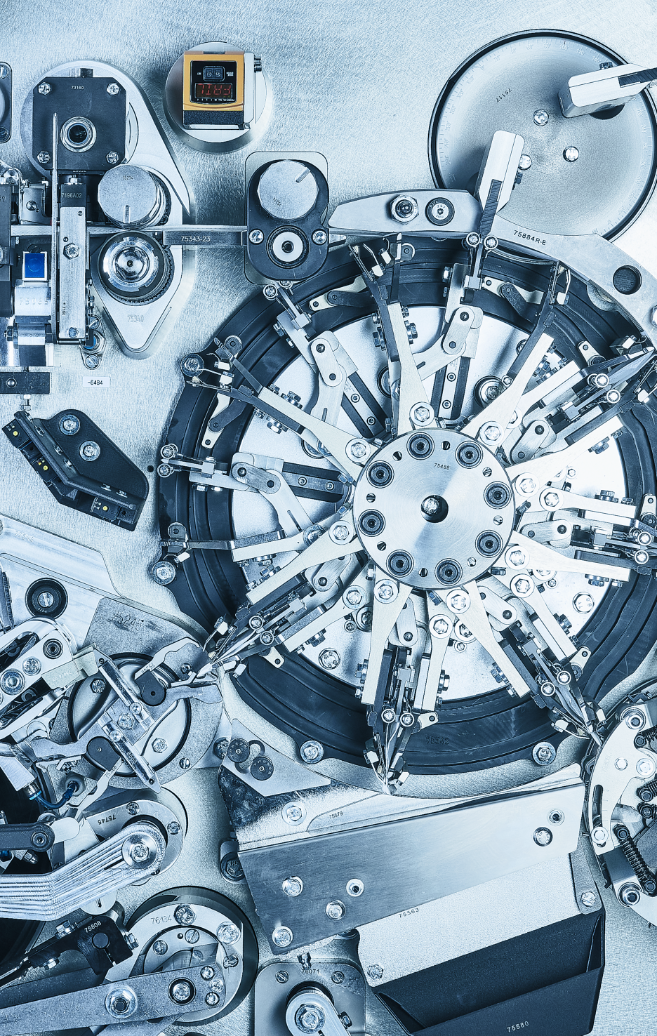

  • Upper transport wheel

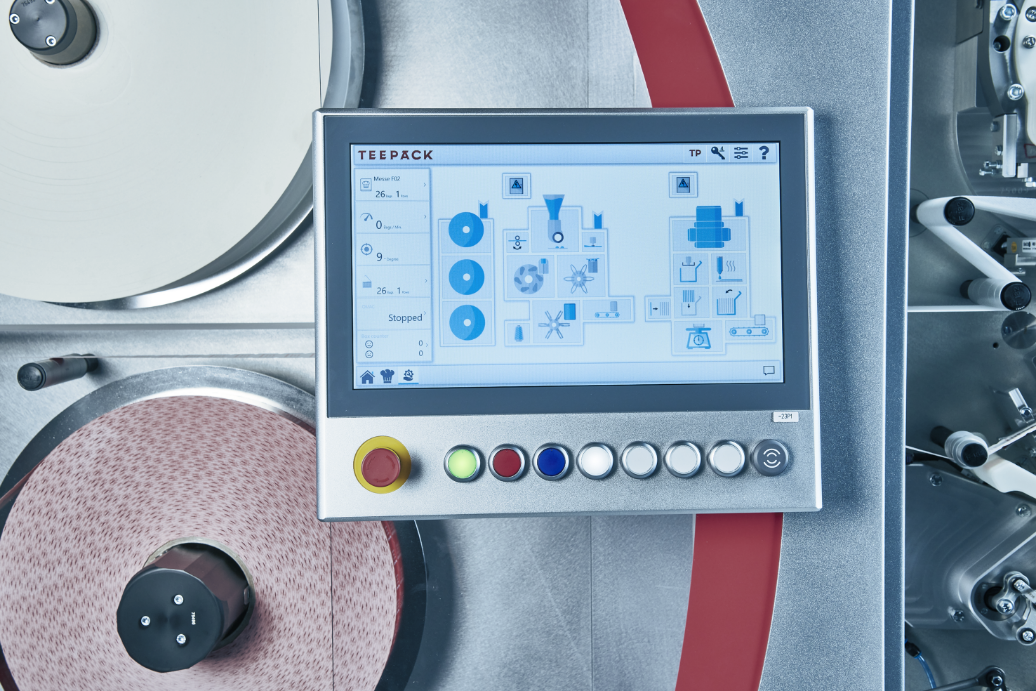

  • Touch panel with HMI
  • ELB: Box magazine

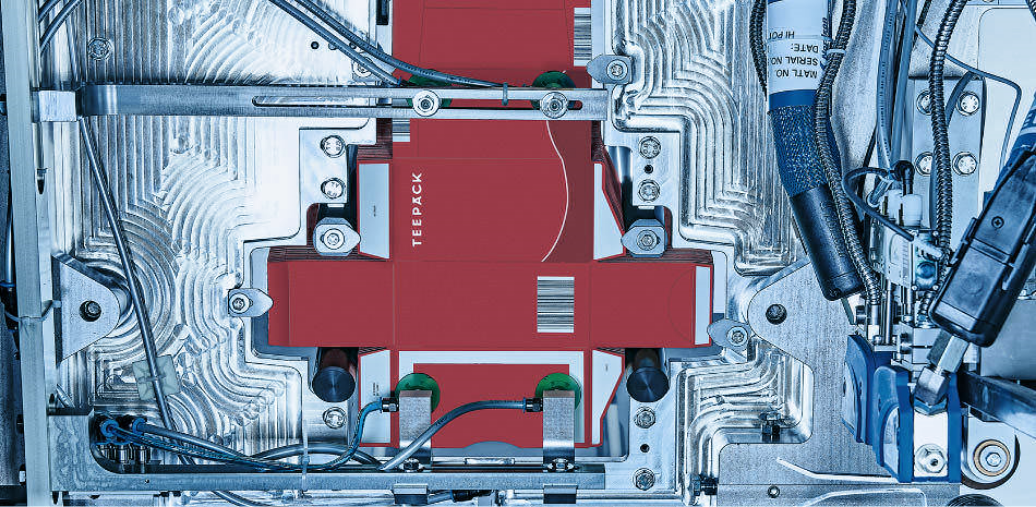

  • ELB: Box production
